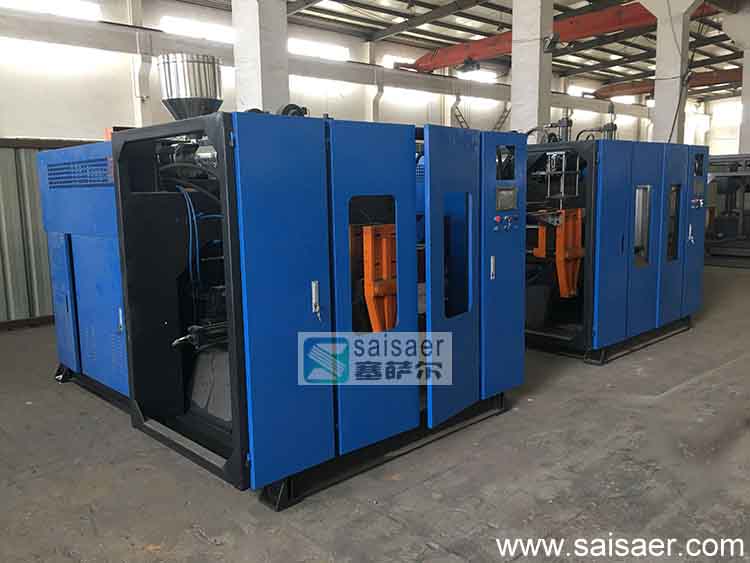

SSB55D mold-moving blow molding machine for PP PE
2019-06-20By saisaer8467 Views
The brief introduction of
- Suitable material: PE PP PVC etc
- Max.Volume of products:
- Main motor power:
- Capacity(empty circle):servo
- Mold-moving drive:
- Open/Close mold drive:
The kind of our blow molding machine
- 1.Automatic hydraulic mold-moving blow molding machine
- 2.Automatic hydraulic accumulator blow molding machine
- 3.Semi-automatic PET blow molding machine
- 4.Full-automatic PET blow molding machine
The products that our blow molding machine can produce
- 1.large multi layer/chemical bucket
- 2.IBC barrel
- 3.daily chemical bottle for perfume etc
- 4.food bottle for milk etc
- 5.industry bottle for oil,pesticide etc
- 6.box for tools
- 7.children toys
- 8.auto parts
The detailed parameters of
The detailed introduction of
Clamping system and mold-moving system
- 1.High-quality brand-name hydraulic components and dual-proportion control for fast energy-saving hydraulic systems.
- 2.The close/open mould and mold-moving both adopt dual linear guideway,mold-moving speed is fast.
- 3.The whole system has the advantages of low noise, low energy consumption, fast and stable performance, long life and good frequency response performance.
Extrusion system
- 1.Screw form: equal-distance unequal mixing type progressive screw.
- 2.Screw material: high-quality nitrided structural steel 38CrMoAlA, surface nitriding treatment, hardness HV≥800, brittleness ≤2.
- 3.Barrel: high-quality nitrided structural steel 38CrMoAlA, surface nitriding treatment, hardness HV≥900, brittleness ≤2.
- 4.Drive mode: variable frequency speed motor + alloy steel hard tooth surface reducer.
- 5.Temperature control: modular temperature control, temperature control accuracy ± 0.5%.
- 6.Heating method: cast aluminum heater plus thermal insulation layer stainless steel shield.
- 7.Cooling method: automatic air cooling.
Diehead sytem
The special steel design center feed die completely eliminates the product convergence line, the surface color is uniform, and the polyethylene, polypropylene and polyvinyl chloride die can be used universally.
Stainless steel heating ring, modular temperature control, temperature control accuracy ±0.5%
Air blowing system
cutting device
Hot cutting or Cooling cutting,side cutting or straight cutting according to the actual products
Hydraulic system
High-quality brand-name hydraulic components and dual-proportion control for fast energy-saving hydraulic systems.
The whole system has the advantages of low noise, low energy consumption, fast and stable performance, long life and good frequency response performance.
Electric control system
Adopt PLC+ man-machine interface (Chinese or English), touch screen operation, realize man-machine dialogue and import components. The production process setting, change, retrieval, and fault diagnosis are all realized on the touch screen, and the operation is simple and clear.
The main parts brand of
Optional parts
