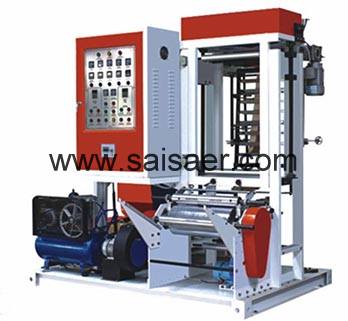

Mini film blowing machine
2019-06-17By saisaer477 Views
The barrel and screw of the extruder are made of high-quality alloy steel, tightly nitrided and precision machined, with the best hardness and corrosion resistance. The specially designed screw has high output and good plasticization. Suitable for blowing low density polyethylene (LDPE) high density polyethylene (HDPE) linear low density polyethylene (LLDPE) and other plastic films, widely used in food, clothing, garbage bags, vest bags and other civilian and industrial packaging.
列表测试
Main technical parameters
| Model |
SJ40-400FM |
| screw diameter |
40mm |
| screw L/D |
28:1 |
| screw rotation speed |
10-120rpm |
| main motor power |
7.5kw |
| extruding capacity |
20kg/h |
| max.film folding width |
50-400mm |
| film thickness(single side) |
0.01-0.1mm |
| total power |
20kw |
| machine weight |
2500kg |
| Dimension(L*W*H)(m) |
3*2.2*3 |
Main parts
| extruding unit |
|
| gearbox |
hard gear face (Changzhou) |
| screw and barrel |
38CrMoAl,surface nitriding treament(Zhoushan) |
| diehead numbers |
2pc |
| diehead screen exchanging way |
manual |
| barrel cooling blower |
3phase centrifugal fan |
| heater |
stainless steel |
| extruder cover |
unitary |
| charging way |
manual |
| temperature control |
digital display |
| take up unit |
|
| take up fram structure |
fixed type |
| take up roller length |
500mm |
| take up motor |
1.2Kw with frequecy drive control |
| take up speed |
0-100rpm |
| take up speed |
0-100rpm |
| herringbone splint |
wooden grating |
| bubble stabilizing device |
low pressure stable bar type |
| roller diameter |
70mm |
| winder |
|
| structure |
single station winding |
| winding way |
central winding |
| diehead |
|
| structure |
inside spin |
| rotation way |
fixed |
| cooling device |
|
| air blower power |
1.1Kw |
| temperature control way |
digital display |
Accessories
| allen wrench |
1set |
| toolbox |
1pc |
| oil bottle |
1pc |
| open end wrench |
8-10,12-14,17-19 |
| filter screen mesh |
5pc |
| air hose |
6pc |
| electric controll cabinet |
1pc |
| film thickness(single side) |
0.01-0.1mm |
| air pressure |
1pc |
test2
Mini film blow molding machine video
