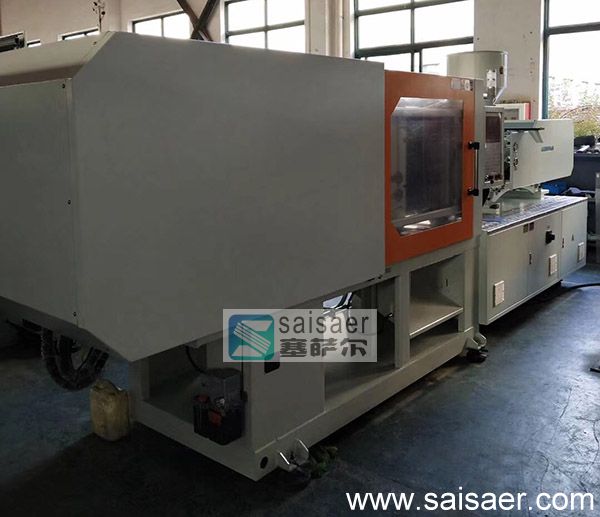

360 ton plastic mold injection machine
2019-06-13By saisaer1083 Views
The brief introduction of
- Place of Origin: China
- Brand Name:saisaer
- Model Number:110ton
- Driving motor:servo
- Voltage:3phase
- Delivery time:25days
- Suitable material:confirm when order
- Payment way: TT
Our series
- 1.Variable pump series injection machine
- 2.Precision servo system injection machine
- 3.PET specialzed injection machine
- 4.High speed thin wall injection machine
- 5.PPR/PE pipe fitting specialized injection machine
- 6.PVC powder specialized injection machine
- 7.Double color injection machine
- 8.Bakelite injection machine
Our standard accessories
- 1.Mold Clamps
- 2.Adjustable mechamical shockproof pad
- 3.Thermal couple
- 4.Heating ring
- 5.Sealing ring
- 6.Contactor
- 7.Tool sets cabinet
Our optional accessories
- 1.Electric eye
- 2.Robot arm
- 3.Automatic feeder
- 4.Hopper dryer
- 5.Dehumidifier
- 6.Water cooler
- 7.Magnetic force shelving
- 8.Hydraulic oil pressure core pulling device
- 9.Mold temperature controller
- 10.Hydraulic safety interlock
- 11.Energy-saving type variable delivery pump
The parameters of
The parts brand of
| Item |
part name |
brand |
original place |
| 1 |
computer |
EST/Techmation |
Taiwan |
| 2 |
contactor |
Schneider/Simens |
France/Germany |
| 3 |
breaker |
Schneider/Omoron |
Frane/Japan |
| 4 |
displacement transducer |
NOVO/JIESA/Jefran |
Germany/USA/Italy |
| 5 |
travel switch |
Schneider/Simens |
France/Germany |
| 6 |
servo motor |
Feishi/Inovance/Haitian |
China |
| 7 |
servo driver |
hunter/Inovance/Haitian |
China |
| 8 |
hydraulic pump |
Sunny/Eckerle/Sumitomo |
Germany/Japan |
| 9 |
direction valve |
Vickers/Tokyokeiki/Yuken |
USA/Japan/Taiwan |
| 10 |
preformed hydraulic motor |
Zhongyi/Staffa/Intermot |
China/Italy |
| 11 |
seal components |
hallite/Trelleborg |
England/Swithland |
Note:all the item marked with bold and underline is the standard brand part.
our structure
clamping part
- 1.The drawbar is hard chrome-plated and resistant to abrasion and corrosion.
- 2.The bottom of the two plates has an adjustable diagonal block structure, which is easy to adjust after wear, thus extending the service life of the machine.
- 3.Automatic centralized lubrication for machine maintenance.
- 4.With synchronous gear shaping, it can be used to adjust the tooth type automatically.
- 5.The clamping position gauge is connected with the thrust to make it easier to adjust the mold protection position.
- 6.Optimized design of the hinge mechanism of the machine, the opening and closing mode is stable and fast, and the service life is long.
shot part
- 1.Double guide guide to improve injection accuracy.
- 2.High speed hydraulic motor.
- 3.Injection, pressure holding pressure closed circuit control, back pressure precision control.
- 4.The structure of the screw barrel is disassembled and easy to replace.
- 5.low-speed high-torque hydraulic motor drives the screw to rotate, and the plasticizing performance is excellent.
- 6.Optimized design of screw raw materials is widely used.
electrical part
The controller uses a special computer for injection molding machine and supports the following functions.
- 1.Panel operator interface supports multiple languages.
- 2.The system unit adopts dual-core microprocessor with high speed, anti-noise and low power consumption.
- 3.USB interface can update or backup system parameters.
- 4.Built-in Ethernet interface, easy to connect.
- 5.Intelligent maintenance page reminder function, provide multi-screen warranty maintenance instructions and tips.
- 6.Graphing pressure, speed, end point, and pressure pressure curve graphic display.
- 7.It has 120 sets of modification records and 120 sets of alarm record functions, which is convenient for data search when abnormal conditions occur.
- 8.The computer starts its own software and hardware detection function and the mechanical fault alarm function.
- 9.I/O analog function, which can realize on-line simulation of input/output points, easy to find wiring and self-detection. The I/O fault point steering function enables software to replace hardware functions.
- 10.Support the simultaneous monitoring of multiple machine controllers through the office computer, establish a dedicated web system, web browsing web pages, company personnel can plan resources in HTML according to different production processes.
- 11.User-friendly design of the operation panel, can be rotated 90 degrees, more convenient for people to operate.
- 12.Servo drive can realize various control methods such as digital control and analog quantity control to meet diverse needs.
- 13.Standard closed-loop monitoring device such as mode-adjusting electric eye, inspection electric eye, speed measuring electric eye, etc.
hydraulic system
- 1.Adopt Taiwan valve block.
- 2.Hydraulic circuit design meets international safety standards.
- 3.Oil temperature is automatically read.
- 4.The pipeline is not welded, durable and reliable, easy to maintain.
- 5.Use well-known hydraulic components.
servo system
- 1.fast response
Servo drive responds quickly and has a 50% faster start-up time than traditional injection molding machines
- 2.oil temperature is constant
The servo motor outputs hydraulic oil proportionally to avoid excessive heat generation. The hydraulic oil does not even need to be cooled, achieving significant water saving.
- 3.Excellent molding stability
Servo drive system, pressure, flow using closed-loop control, compared to the traditional injection molding machine, molding repeatability is significantly improved.
- 4.substantial energy saving
Under the same conditions, energy saving is 20%-80% compared with traditional injection molding machines.
- 5.Environmental protection
The whole machine runs with low noise.
